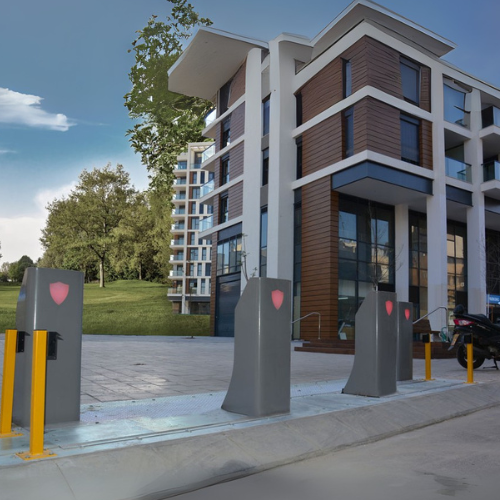

Metis K-4 Surface Mount Bollards

METIS is an innovative all-electric bollards system, comprising high-security sliding bollards designed to meet the highest security standards – ASTM, IWA and PAS 68. METIS has a unique all-electric drive unit, with a simple and reliable chain drive system. METIS can be mounted on any concrete pad thicker than 200 mm using common anchor bolts. With its unique look and technology, METIS provides an advanced and reliable solution in the perimeter security area.

Categories: Bollards

Call Us at +1-480-898-1272

Description
Reviews (0)

Product	BLG-METIS
Height Above Road (H)	1010mm/ 39.76"
Base height	114mm/4.48"
Regular operation speed	4 sec
IP Rate	IP-54
Resistance	IWA 14-1:2013 V/7200[N2A]/48/90:0.0 Bollard continues to operate after crash
Operation temp	-20+60 C/ -4 +140 F Heating unit is optional
Finish	Powder coating any RAL color.
Features	IR safety eyes
Actuator	Electric 3 phase motor with chain drive system
Limit switch	Inductive UP DOWN limit switches
Power	1.5 Kw three phase motor running on a single phase, power supply tailored to customer requirements
Cycles per day	2700
MCBF	1,500,000 cycles
