Sliding Crash Gate NMSB XX

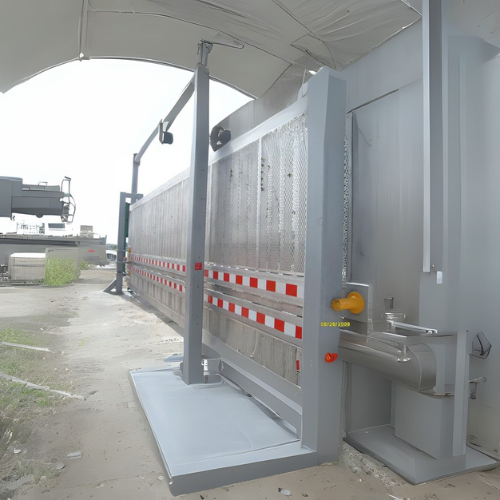

The NMSB XX is a high-security cantilever sliding gate engineered to provide reliable vehicle access control and perimeter protection for critical facilities. Designed for locations that require advanced security, this crash-rated gate is capable of stopping high-impact vehicle threats while maintaining smooth and efficient operation.

Available with clear opening widths ranging from 12 to 24 feet, the NMSB XX is suitable for military bases, government facilities, utilities, data centers, and other high-security sites. Its heavy-duty design consists of three primary components: the gate support frame, sliding gate assembly, and receiver assembly, all working together to deliver dependable performance, durability, and controlled access in demanding environments.

Description

The NMSB XX is a cantilevered sliding crash gate for high-threat security facilities. The NMSB XX is DOS rated to stop a 15,000-pound vehicle travelling at 50 mph. The average barrier opening is 12ft. Clear opening sizes from 12 ft. to 24 ft. are available. The Sliding Gate Assembly contains three main components: Gate Support Frame Assembly, Barrier Gate Assembly and Receiver Assembly. This barrier can be manually operated, or controlled using an electro-hydraulic or all-electric motor. Typical power for this barrier is 115-480V, 1 or 3 phase, 50hz or 60hz.

Two power options are available:

  • Integrated electric power unit (EPU)
  • Remote electro-hydraulic power unit (HPU)
